单元测试实战

约 2365 字大约 8 分钟

2024-06-25

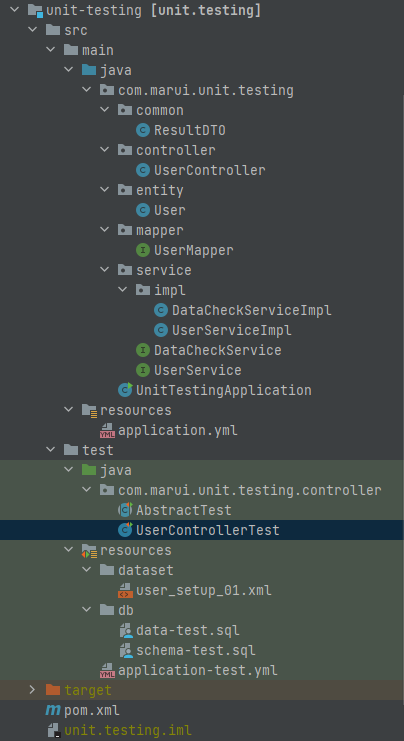

项目中内容分为测试用到的 demo 代码以及单元测试相关代码，基础内容请移步 单元测试

1、引入依赖

依赖

<!-- 单元测试相关依赖 start -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
</dependency>
<dependency>
    <groupId>org.dbunit</groupId>
    <artifactId>dbunit</artifactId>
    <version>2.5.0</version>
</dependency>
<dependency>
    <groupId>com.github.springtestdbunit</groupId>
    <artifactId>spring-test-dbunit</artifactId>
    <version>1.3.0</version>
</dependency>
<dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <version>1.4.200</version>
    <scope>runtime</scope>
</dependency>
<!-- 单元测试相关依赖 end -->

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.3.0</version>
</dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.83</version>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

2、Demo 代码

统一结果返回实体类

package com.marui.unit.testing.common;

import lombok.Data;

import java.io.Serializable;

/**
 * @ClassName ResultDTO
 * @Desciption 统一结果返回
 * @Author MaRui
 * @address https://maruinotes.com
 * @Date 2022/2/10 9:46
 * @Version 1.0
 */
@Data
public class ResultDTO<T> implements Serializable {

    /**
     * 业务处理结果编码
     */
    private String code;

    /**
     * 业务处理结果信息
     */
    private String msg;

    /**
     * 业务处理响应数据
     */
    private T data;

    public ResultDTO() {
    }

    public ResultDTO(String code) {
        this.code = code;
    }

    public ResultDTO(String code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public ResultDTO(String code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    public static <T> ResultDTO<T> ok() {
        return new ResultDTO("000000", "Success");
    }

    public static <T> ResultDTO<T> ok(T data) {
        return new ResultDTO("000000", "Success", data);
    }

    public static <T> ResultDTO<T> ok(String code, String msg, T data) {
        return new ResultDTO(code, msg, data);
    }

    public static <T> ResultDTO<T> error() {
        return new ResultDTO("500", "未知异常，请联系管理员");
    }

    public static <T> ResultDTO<T> error(String msg) {
        return new ResultDTO("500", msg);
    }

    public static <T> ResultDTO<T> error(String code, String msg) {
        return new ResultDTO(code, msg);
    }
}

Controller 层

package com.marui.unit.testing.controller;

import com.marui.unit.testing.common.ResultDTO;
import com.marui.unit.testing.entity.User;
import com.marui.unit.testing.service.UserService;
import lombok.Data;
import org.springframework.web.bind.annotation.*;

/**
 * @ClassName UserController
 * @Desciption 用户控制层
 * @Author MaRui
 * @Date 2023/2/15 16:42
 * @Version 1.0
 */
@Data
@RestController
@RequestMapping("/user")
public class UserController {

    private final UserService userService;

    /**
     * 添加用户
     * @param user 用户信息
     * @return 添加后的用户信息
     */
    @PostMapping(value = "/add")
    public ResultDTO add(@RequestBody User user) {
        User resultUser = userService.add(user);
        return resultUser != null ? ResultDTO.ok(user) : ResultDTO.error();
    }

    /**
     * 删除用户
     * @param id 用户ID
     * @return
     */
    @DeleteMapping(value = "/delete")
    public ResultDTO delete(@RequestParam Long id) {
        userService.delete(id);
        return ResultDTO.ok();
    }

    /**
     * 修改用户
     * @param user 修改用户数据
     * @return
     */
    @PatchMapping(value = "/update")
    public ResultDTO update(@RequestBody User user) {
        userService.update(user);
        return ResultDTO.ok();
    }

    /**
     * 查询用户
     * @param id 用户ID
     * @return 用户信息
     */
    @GetMapping(value = "/getOne")
    public ResultDTO<User> getOne(@RequestParam Long id) {
        User user = userService.getOne(id);
        return ResultDTO.ok(user);
    }
}

Service 层

package com.marui.unit.testing.service;

import com.marui.unit.testing.entity.User;

/**
 * @ClassName UserService
 * @Desciption 用户业务逻辑接口层
 * @Author MaRui
 * @Date 2023/2/15 17:06
 * @Version 1.0
 */
public interface UserService {

    /**
     * 添加用户
     * @param user 用户信息
     * @return
     */
    User add(User user);

    /**
     * 删除用户
     * @param id 用户ID
     */
    void delete(Long id);

    /**
     * 修改用户
     * @param user 用户信息
     */
    void update(User user);

    /**
     * 根据ID查询用户
     * @param id 用户ID
     * @return
     */
    User getOne(Long id);
}

package com.marui.unit.testing.service.impl;

import com.marui.unit.testing.entity.User;
import com.marui.unit.testing.mapper.UserMapper;
import com.marui.unit.testing.service.DataCheckService;
import com.marui.unit.testing.service.UserService;
import lombok.Data;
import org.springframework.stereotype.Service;

/**
 * @ClassName UserServiceImpl
 * @Desciption 用户业务逻辑实现层
 * @Author MaRui
 * @Date 2023/2/15 17:06
 * @Version 1.0
 */
@Data
@Service
public class UserServiceImpl implements UserService {

    private final UserMapper userMapper;

    private final DataCheckService dataCheckService;

    @Override
    public User add(User user) {
        // 用户信息校验
        if (!dataCheckService.checkUser(user)) {
            return null;
        }
        userMapper.insert(user);
        return user;
    }

    @Override
    public void delete(Long id) {
        userMapper.deleteById(id);
    }

    @Override
    public void update(User user) {
        userMapper.updateById(user);
    }

    @Override
    public User getOne(Long id) {
        return userMapper.selectById(id);
    }
}

package com.marui.unit.testing.service.impl;

import com.marui.unit.testing.entity.User;
import com.marui.unit.testing.service.DataCheckService;
import org.springframework.stereotype.Service;

/**
 * @ClassName DataCheckServiceImpl
 * @Desciption 数据校验业务逻辑层
 * @Author MaRui
 * @Date 2023/2/15 18:06
 * @Version 1.0
 */
@Service
public class DataCheckServiceImpl implements DataCheckService {

    @Override
    public Boolean checkUser(User user) {
        // 业务逻辑校验.....
        return null;
    }
}

package com.marui.unit.testing.service.impl;

import com.marui.unit.testing.entity.User;
import com.marui.unit.testing.service.DataCheckService;
import org.springframework.stereotype.Service;

/**
 * @ClassName DataCheckServiceImpl
 * @Desciption 数据校验业务逻辑层
 * @Author MaRui
 * @Date 2023/2/15 18:06
 * @Version 1.0
 */
@Service
public class DataCheckServiceImpl implements DataCheckService {

    @Override
    public Boolean checkUser(User user) {
        // 业务逻辑校验.....
        return null;
    }
}

Mapper 层

package com.marui.unit.testing.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.marui.unit.testing.entity.User;

/**
 * @ClassName UserMapper
 * @Desciption 用户 mapper 层
 * @Author MaRui
 * @Date 2023/2/15 17:11
 * @Version 1.0
 */
public interface UserMapper extends BaseMapper<User> {
}

实体类

package com.marui.unit.testing.entity;

import com.baomidou.mybatisplus.annotation.TableId;
import lombok.Data;

import java.io.Serializable;

/**
 * @ClassName User
 * @Desciption 用户信息
 * @Author MaRui
 * @Date 2023/2/15 16:44
 * @Version 1.0
 */
@Data
public class User implements Serializable {

    private static final long serialVersionUID = 1L;

    /** ID */
    @TableId
    private Long id;

    /** 用户姓名 */
    private String name;
}

3、单元测试配置

表数据配置

表数据配置文件 user_setup_01.xml，用于单个单元测试类数据的添加。

<?xml version="1.0" encoding="UTF-8"?>

<dataset>

    <user id="10000001" name="MaRui_1" />
    <user id="10000002" name="MaRui_2" />
    <user id="10000003" name="MaRui_3" />

</dataset>

表约束

因为是使用的 H2 内存数据库，需要将表创建 SQL 配置好，用于初始化表结构，配置在 schema-test.sql 文件中。

drop table if exists `user`;
create table `user` (
	id bigint not null auto_increment,
	name varchar(25),
	primary key(`id`)
);

项目配置文件

单元测试项目配置文件 application-test.yml，单元测试启动时用到的配置文件。

项目配置文件

spring:
  datasource:
    platform: h2
    # mem 表示使用的是 H2 的内存模式；testdb 为库名；database_to_upper=false：这个参数是用来指定 H2 在创建数据库与表时，不会默认转换为大写，因为 H2 对大小写敏感，会自动将英文转换为大写。在第一次创建数据库时就必须指定此参数，否则会出现不生效的情况。
    url: jdbc:h2:mem:test;MODE=MYSQL;DATABASE_TO_UPPER=false;
    # 用户名默认 sa
    username: sa
    # 密码默认为空
    password:
    # 配置数据库的建表语句，建表语句需要符合 H2 的建表语句规则，在 idea 中可以通过修改 sql 语法来实现自动识别装换。
    schema: classpath:db/schema-test.sql
    # 初始化数据，不需要可以注释掉，需要的话在 data-test.sql 中添加 insert SQL 脚本
    # data: classpath:db/data-test.sql
    initialization-mode: always
    #  org.h2.Driver
    driverClassName: org.h2.Driver
    druid:
      # 初始连接数
      initialSize: 5
      # 最小连接池数量
      minIdle: 10
      # 最大连接池数量
      maxActive: 20
      # 配置获取连接等待超时的时间
      maxWait: 60000
      # 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
      timeBetweenEvictionRunsMillis: 60000
      # 配置一个连接在池中最小生存的时间，单位是毫秒
      minEvictableIdleTimeMillis: 300000
      # 配置一个连接在池中最大生存的时间，单位是毫秒
      maxEvictableIdleTimeMillis: 900000
      # 配置检测连接是否有效
      validationQuery: SELECT 1 FROM DUAL
      testWhileIdle: true
      testOnBorrow: false
      testOnReturn: false

# 日志配置
logging:
  level:
    com.marui.unit.testing: debug
    org.springframework: info

3、单元测试代码

MockMvc 初始化，后续其他测试类直接继承

package com.marui.unit.testing.controller;

import com.github.springtestdbunit.DbUnitTestExecutionListener;
import com.marui.unit.testing.UnitTestingApplication;
import org.junit.Before;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.boot.test.mock.mockito.MockitoTestExecutionListener;
import org.springframework.test.context.ActiveProfiles;
import org.springframework.test.context.TestExecutionListeners;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.test.context.support.DependencyInjectionTestExecutionListener;
import org.springframework.test.context.support.DirtiesContextTestExecutionListener;
import org.springframework.test.context.web.WebAppConfiguration;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.setup.MockMvcBuilders;
import org.springframework.web.context.WebApplicationContext;


@WebAppConfiguration
@ActiveProfiles("test")
@RunWith(SpringRunner.class)
@SpringBootTest(classes = {UnitTestingApplication.class})
@TestExecutionListeners({DependencyInjectionTestExecutionListener.class, DirtiesContextTestExecutionListener.class, DbUnitTestExecutionListener.class, MockitoTestExecutionListener.class})
public abstract class AbstractTest {

    @Autowired
    protected WebApplicationContext webApplicationContext;

    protected MockMvc mockMvc;

    @Before()
    public void setup() {
        mockMvc = MockMvcBuilders.webAppContextSetup(webApplicationContext).build();
    }
}

UserController 单元测试代码

package com.marui.unit.testing.controller;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.github.springtestdbunit.annotation.DatabaseOperation;
import com.github.springtestdbunit.annotation.DatabaseSetup;
import com.marui.unit.testing.entity.User;
import com.marui.unit.testing.mapper.UserMapper;
import com.marui.unit.testing.service.DataCheckService;
import lombok.extern.slf4j.Slf4j;
import org.junit.Test;
import org.mockito.Mockito;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.http.MediaType;
import org.springframework.test.web.servlet.MvcResult;
import org.springframework.test.web.servlet.request.MockMvcRequestBuilders;
import org.springframework.test.web.servlet.result.MockMvcResultHandlers;

import static org.junit.Assert.*;

/**
 * @ClassName UserControllerTest
 * @Desciption
 * @Author MaRui
 * @Date 2023/2/15 16:46
 * @Version 1.0
 */
@Slf4j
public class UserControllerTest extends AbstractTest {

    @Autowired
    private UserMapper userMapper;

    @MockBean
    private DataCheckService dataCheckService;

    /**
     * 用户新增：用户数据校验不通过
     * @throws Exception
     */
    @Test
    @DatabaseSetup(value = "/dataset/user_setup_01.xml", type = DatabaseOperation.CLEAN_INSERT)
    public void testAdd1() throws Exception {
        // 构造数据
        User user = new User();
        user.setName("马锐");
        String requestJson = JSON.toJSONString(user);

        // Mock checkUser() 方法结果
        Mockito.when(dataCheckService.checkUser(user)).thenReturn(Boolean.FALSE);

        // 接口调用
        MvcResult result = mockMvc
                .perform(MockMvcRequestBuilders
                        .post("/user/add")
                        .content(requestJson)
                        .contentType(MediaType.APPLICATION_JSON)
                        .accept("application/json;charset=UTF-8"))
                .andDo(MockMvcResultHandlers.print()).andReturn();

        JSONObject resultObject = JSONObject.parseObject(result.getResponse().getContentAsString());
        log.info("返回结果输出：{}", resultObject);

        // 断言：比较状态码
        assertEquals("500", resultObject.getString("code"));
    }

    /**
     * 用户新增：用户数据校验通过，新增成功
     * @throws Exception
     */
    @Test
    @DatabaseSetup(value = "/dataset/user_setup_01.xml", type = DatabaseOperation.CLEAN_INSERT)
    public void testAdd2() throws Exception {
        // 构造数据
        String userName = "马锐";
        User user = new User();
        user.setName(userName);
        String requestJson = JSON.toJSONString(user);

        // Mock checkUser() 方法结果
        Mockito.when(dataCheckService.checkUser(user)).thenReturn(Boolean.TRUE);

        // 接口调用
        MvcResult result = mockMvc
                .perform(MockMvcRequestBuilders
                        .post("/user/add")
                        .content(requestJson)
                        .contentType(MediaType.APPLICATION_JSON)
                        .accept("application/json;charset=UTF-8"))
                .andDo(MockMvcResultHandlers.print()).andReturn();

        JSONObject resultObject = JSONObject.parseObject(result.getResponse().getContentAsString());
        log.info("返回结果输出：{}", resultObject);

        // 获取返回中的数据
        String dataStr = resultObject.getString("data");
        User userResult = JSON.parseObject(dataStr, User.class);
        // 根据插入后返回的数据id，查询数据库中数据
        User queryUser = userMapper.selectById(userResult.getId());

        // 断言：比较状态码
        assertEquals("000000", resultObject.getString("code"));
        // 断言：数据库中存在插入的数据
        assertNotNull(queryUser);
        // 断言：数据库中数据与插入数据一致
        assertEquals(user.getName(), queryUser.getName());
    }




    /**
     * 用户删除：删除成功
     * @throws Exception
     */
    @Test
    @DatabaseSetup(value = "/dataset/user_setup_01.xml", type = DatabaseOperation.CLEAN_INSERT)
    public void testDelete1() throws Exception {
        // 构造数据
        Long userId = 10000001L;

        // 接口调用
        MvcResult result = mockMvc
                .perform(MockMvcRequestBuilders
                        .delete("/user/delete?id=" + userId)
                        .contentType(MediaType.APPLICATION_JSON)
                        .accept("application/json;charset=UTF-8"))
                .andDo(MockMvcResultHandlers.print()).andReturn();

        JSONObject resultObject = JSONObject.parseObject(result.getResponse().getContentAsString());
        log.info("返回结果输出：{}", resultObject);

        // 根据 userId 查询数据是否删除
        User user = userMapper.selectById(userId);

        // 断言：比较状态码
        assertEquals("000000", resultObject.getString("code"));
        // 断言：userId 在数据库中不存在
        assertNull(user);
    }



    /**
     * 用户修改：修改成功
     * @throws Exception
     */
    @Test
    @DatabaseSetup(value = "/dataset/user_setup_01.xml", type = DatabaseOperation.CLEAN_INSERT)
    public void testUpdate1() throws Exception {
        // 构造数据
        Long userId = 10000002L;
        String userName = "马锐";
        User user = new User();
        user.setId(userId);
        user.setName(userName);
        String requestJson = JSON.toJSONString(user);

        // 接口调用
        MvcResult result = mockMvc
                .perform(MockMvcRequestBuilders
                        .patch("/user/update")
                        .content(requestJson)
                        .contentType(MediaType.APPLICATION_JSON)
                        .accept("application/json;charset=UTF-8"))
                .andDo(MockMvcResultHandlers.print()).andReturn();

        JSONObject resultObject = JSONObject.parseObject(result.getResponse().getContentAsString());
        log.info("返回结果输出：{}", resultObject);

        // 根据 userId 查询修改后的数据
        User updatedUser = userMapper.selectById(userId);

        // 断言：比较状态码
        assertEquals("000000", resultObject.getString("code"));
        // 断言：userId 在数据库中存在
        assertNotNull(updatedUser);
        // 断言：修改的数据和修改后数据库中数据一致
        assertEquals(user, updatedUser);
    }

    /**
     * 用户查询：查询成功
     * @throws Exception
     */
    @Test
    @DatabaseSetup(value = "/dataset/user_setup_01.xml", type = DatabaseOperation.CLEAN_INSERT)
    public void testGetOne1() throws Exception {
        // 构造数据
        Long userId = 10000003L;
        User user = new User();
        user.setId(userId);
        user.setName("MaRui_3");

        // 接口调用
        MvcResult result = mockMvc
                .perform(MockMvcRequestBuilders
                        .get("/user/getOne?id=" + userId)
                        .contentType(MediaType.APPLICATION_JSON)
                        .accept("application/json;charset=UTF-8"))
                .andDo(MockMvcResultHandlers.print()).andReturn();

        JSONObject resultObject = JSONObject.parseObject(result.getResponse().getContentAsString());
        log.info("返回结果输出：{}", resultObject);

        // 获取返回中的数据
        String dataStr = resultObject.getString("data");
        User userResult = JSON.parseObject(dataStr, User.class);

        // 断言：比较状态码
        assertEquals("000000", resultObject.getString("code"));
        // 断言：修改的数据和修改后数据库中数据一致
        assertEquals(user, userResult);
    }
}
