Spring Security 5 表单配置
登录表单

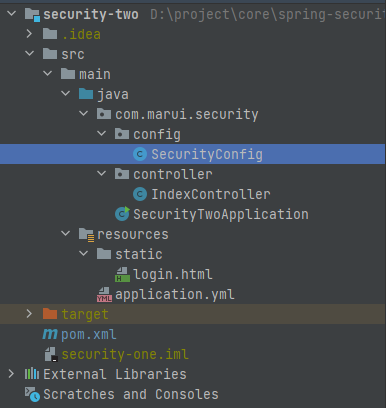

项目结构
pom.xml
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.70</version>
</dependency>application.yml
spring:
security:
user:
name: marui
password: 1234IndexController.java
/**
* @ClassName IndexController
* @Desciption 首页控制层
* @Author MaRui
* @Date 2023/8/10 18:00
* @Version 1.0
*/
@RestController
@RequestMapping("/index")
public class IndexController {
@GetMapping(value = "/info")
public String getInfo() {
return "首页信息";
}
}login.html

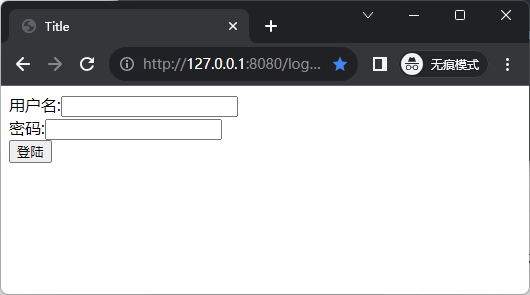

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>
<form action="/login" method="post">
用户名:<input name="username" type="text"><br>
密码:<input name="password" type="password"><br>
<button type="submit">登陆</button>
</form>
</body>
</html>SecurityConfig.java
/**
* @ClassName SecurityConfig
* @Desciption Security 配置
* @Author MaRui
* @Date 2023/8/11 14:31
* @Version 1.0
*/
@Configuration
public class SecurityConfig {
@Bean
public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
// authorizeHttpRequests()：开启权限配置
http.authorizeHttpRequests((auth) ->{
try {
// anyRequest().authenticated()：所有请求都需要认证
auth.anyRequest().authenticated()
// and()：返回 HttpSecurity，继续配置
.and()
// formLogin()：开启表单登录，引入表单登录过滤器（默认引入）
.formLogin()
// loginPage()：自定义登录页面
.loginPage("/login.html")
// loginProcessingUrl()：定义登录提交的接口地址
.loginProcessingUrl("/login")
// defaultSuccessUrl()：登录成功后跳转地址
.defaultSuccessUrl("/index/info")
// failureUrl()：登录失败后跳转地址
.failureUrl("/login.html")
// permitAll()：不需要认证的请求地址
.permitAll()
.and()
// csrf().disable()：csrf 防护，默认是开启。为了测试方便，暂时禁用
.csrf().disable();
} catch (Exception e) {
throw new RuntimeException(e);
}
});
return http.build();
}
}
表单 key
在 SecurityConfig 中对应位置增加配置，自定义表单提交请求 key 值
auth.anyRequest().authenticated()
// and()：返回 HttpSecurity，继续配置
.and()
// formLogin()：开启表单登录，引入表单登录过滤器（默认引入）
.formLogin()
.usernameParameter("name")

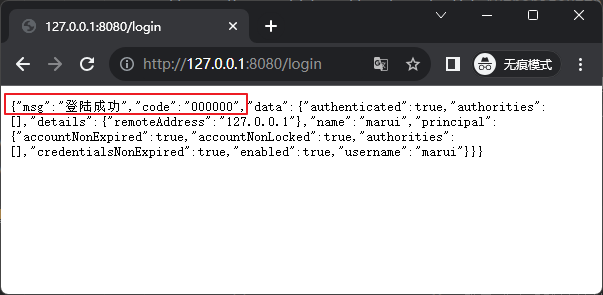

.passwordParameter("pwd")认证成功
SecurityConfig 中配置 successHandler 内容，重写认证成功逻辑
// anyRequest().authenticated()：所有请求都需要认证
auth.anyRequest().authenticated()
.and()
.formLogin()
.loginPage("/login.html")
.loginProcessingUrl("/login")
.defaultSuccessUrl("/index/info")
.failureUrl("/login.html")
.successHandler(new AuthenticationSuccessHandler() {
@Override
public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication) throws IOException, ServletException {
Map<String,Object> result = new HashMap<>();
result.put("code", "000000");
result.put("msg","登陆成功");
result.put("data",authentication);
renderString(response, JSON.toJSONString(result));
}
})
.permitAll()
.and()
.csrf().disable();/**
* 将字符串渲染到客户端
*
* @param response 渲染对象
* @param string 待渲染的字符串
* @return null
*/
public static String renderString(HttpServletResponse response, String string) {
try {
response.setStatus(200);
response.setContentType("application/json");
response.setCharacterEncoding("utf-8");
response.getWriter().print(string);
} catch (IOException e) {
e.printStackTrace();
}
return null;
}

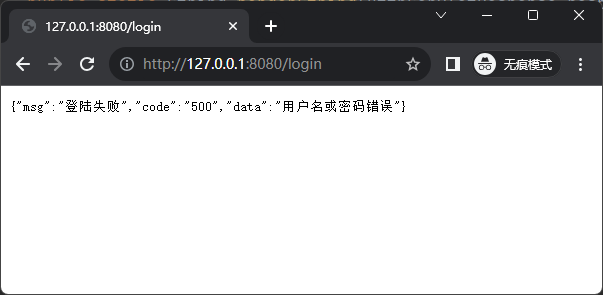

认证失败
SecurityConfig 中配置 failureHandler 内容，重写认证失败逻辑
// anyRequest().authenticated()：所有请求都需要认证
auth.anyRequest().authenticated()
.and()
.formLogin()
.loginPage("/login.html")
.loginProcessingUrl("/login")
.defaultSuccessUrl("/index/info")
.failureUrl("/login.html")
.failureHandler(new AuthenticationFailureHandler() {
@Override
public void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {
Map<String,Object> result = new HashMap<>();
result.put("code", "500");
result.put("msg","登陆失败");
result.put("data",exception.getMessage());
renderString(response, JSON.toJSONString(result));
}
})
.permitAll()
.and()
.csrf().disable();/**
* 将字符串渲染到客户端
*
* @param response 渲染对象
* @param string 待渲染的字符串
* @return null
*/
public static String renderString(HttpServletResponse response, String string) {
try {
response.setStatus(200);
response.setContentType("application/json");
response.setCharacterEncoding("utf-8");
response.getWriter().print(string);
} catch (IOException e) {
e.printStackTrace();
}
return null;
}
探究—表单 key
默认 key
找到 SecurityConfig 配置类，点击 formLogin() 方法
auth.anyRequest().authenticated()
// and()：返回 HttpSecurity，继续配置
.and()
// formLogin()：开启表单登录，引入表单登录过滤器（默认引入）
.formLogin()点开之后我们进入到了 HttpSecurity 中的 formLogin() 方法，我们继续点击 FormLoginConfigurer 这个方法
public final class HttpSecurity extends AbstractConfiguredSecurityBuilder<DefaultSecurityFilterChain, HttpSecurity>
implements SecurityBuilder<DefaultSecurityFilterChain>, HttpSecurityBuilder<HttpSecurity> {
public FormLoginConfigurer<HttpSecurity> formLogin() throws Exception {
return getOrApply(new FormLoginConfigurer<>());
}
}ok，一点进来之后我们就看到了登录表单默认的key 值为 username、password
public final class FormLoginConfigurer<H extends HttpSecurityBuilder<H>> extends
AbstractAuthenticationFilterConfigurer<H, FormLoginConfigurer<H>, UsernamePasswordAuthenticationFilter> {
/**
* Creates a new instance
* @see HttpSecurity#formLogin()
*/
public FormLoginConfigurer() {
super(new UsernamePasswordAuthenticationFilter(), null);
usernameParameter("username");
passwordParameter("password");
}
}自定义 key
如果我们在 SecurityConfig 配置了表单用户名和密码的 key 值，则会覆盖掉默认的 key 值，点击 usernameParameter() 或 passwordParameter()，就会发现调用的方法和 FormLoginConfigurer 无参构造方法中的是同样的
// anyRequest().authenticated()：所有请求都需要认证
auth.anyRequest().authenticated()
// and()：返回 HttpSecurity，继续配置
.and()
// formLogin()：开启表单登录，引入表单登录过滤器（默认引入）
.formLogin()
.usernameParameter("name")
.passwordParameter("pwd")public final class FormLoginConfigurer<H extends HttpSecurityBuilder<H>> extends
AbstractAuthenticationFilterConfigurer<H, FormLoginConfigurer<H>, UsernamePasswordAuthenticationFilter> {
/**
* The HTTP parameter to look for the username when performing authentication. Default
* is "username".
* @param usernameParameter the HTTP parameter to look for the username when
* performing authentication
* @return the {@link FormLoginConfigurer} for additional customization
*/
public FormLoginConfigurer<H> usernameParameter(String usernameParameter) {
getAuthenticationFilter().setUsernameParameter(usernameParameter);
return this;
}
/**
* The HTTP parameter to look for the password when performing authentication. Default
* is "password".
* @param passwordParameter the HTTP parameter to look for the password when
* performing authentication
* @return the {@link FormLoginConfigurer} for additional customization
*/
public FormLoginConfigurer<H> passwordParameter(String passwordParameter) {
getAuthenticationFilter().setPasswordParameter(passwordParameter);
return this;
}
}默认登录页面生成
在 SecurityConfig 配置类中，点击 formLogin() 方法
// anyRequest().authenticated()：所有请求都需要认证
auth.anyRequest().authenticated()
.and()
.formLogin()
.permitAll()
.and()
.csrf().disable();进入到 HttpSecurity 的 formLogin() 方法，点击 FormLoginConfigurer 类
public final class HttpSecurity extends AbstractConfiguredSecurityBuilder<DefaultSecurityFilterChain, HttpSecurity>
implements SecurityBuilder<DefaultSecurityFilterChain>, HttpSecurityBuilder<HttpSecurity> {
public FormLoginConfigurer<HttpSecurity> formLogin() throws Exception {
return getOrApply(new FormLoginConfigurer<>());
}
}进入到 FormLoginConfigurer 类的无参构造方法。这里我们顺便可以看到，如果不指定登录表单参数名，这里默认就是 username、password。点开 UsernamePasswordAuthenticationFilter 这个类
public final class FormLoginConfigurer<H extends HttpSecurityBuilder<H>> extends
AbstractAuthenticationFilterConfigurer<H, FormLoginConfigurer<H>, UsernamePasswordAuthenticationFilter> {
/**
* Creates a new instance
* @see HttpSecurity#formLogin()
*/
public FormLoginConfigurer() {
super(new UsernamePasswordAuthenticationFilter(), null);
usernameParameter("username");
passwordParameter("password");
}
}在 UsernamePasswordAuthenticationFilter 中也可以看到，FormLoginConfigurer 的父类中默认参数名也是 username、password。并且登录请求的方式默认是 POST，路径为 /login
public class UsernamePasswordAuthenticationFilter extends AbstractAuthenticationProcessingFilter {
public static final String SPRING_SECURITY_FORM_USERNAME_KEY = "username";
public static final String SPRING_SECURITY_FORM_PASSWORD_KEY = "password";
private static final AntPathRequestMatcher DEFAULT_ANT_PATH_REQUEST_MATCHER = new AntPathRequestMatcher("/login",
"POST");
private String usernameParameter = SPRING_SECURITY_FORM_USERNAME_KEY;
private String passwordParameter = SPRING_SECURITY_FORM_PASSWORD_KEY;
public UsernamePasswordAuthenticationFilter() {
super(DEFAULT_ANT_PATH_REQUEST_MATCHER);
}
}扯远了，我们继续回来看登录页面代码如何生成的，继续回到 FormLoginConfigurer 这个类，找到初始化方法（搜索 init 关键字）
public final class FormLoginConfigurer<H extends HttpSecurityBuilder<H>> extends
AbstractAuthenticationFilterConfigurer<H, FormLoginConfigurer<H>, UsernamePasswordAuthenticationFilter> {
@Override
public void init(H http) throws Exception {
super.init(http);
initDefaultLoginFilter(http);
}
private void initDefaultLoginFilter(H http) {
DefaultLoginPageGeneratingFilter loginPageGeneratingFilter = http
.getSharedObject(DefaultLoginPageGeneratingFilter.class);
if (loginPageGeneratingFilter != null && !isCustomLoginPage()) {
loginPageGeneratingFilter.setFormLoginEnabled(true);
loginPageGeneratingFilter.setUsernameParameter(getUsernameParameter());
loginPageGeneratingFilter.setPasswordParameter(getPasswordParameter());
loginPageGeneratingFilter.setLoginPageUrl(getLoginPage());
loginPageGeneratingFilter.setFailureUrl(getFailureUrl());
loginPageGeneratingFilter.setAuthenticationUrl(getLoginProcessingUrl());
}
}
}点开 DefaultLoginPageGeneratingFilter 默认登录页面生成过滤器这个类，过滤器的话我们直接搜一下 doFilter 这个关键字，最终找到 generateLoginPageHtml(HttpServletRequest request, boolean loginError, boolean logoutSuccess) 这个登录页面生成方法
public class DefaultLoginPageGeneratingFilter extends GenericFilterBean {
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
boolean loginError = isErrorPage(request);
boolean logoutSuccess = isLogoutSuccess(request);
if (isLoginUrlRequest(request) || loginError || logoutSuccess) {
String loginPageHtml = generateLoginPageHtml(request, loginError, logoutSuccess);
response.setContentType("text/html;charset=UTF-8");
response.setContentLength(loginPageHtml.getBytes(StandardCharsets.UTF_8).length);
response.getWriter().write(loginPageHtml);
return;
}
chain.doFilter(request, response);
}
private String generateLoginPageHtml(HttpServletRequest request, boolean loginError, boolean logoutSuccess) {
String errorMsg = "Invalid credentials";
if (loginError) {
HttpSession session = request.getSession(false);
if (session != null) {
AuthenticationException ex = (AuthenticationException) session
.getAttribute(WebAttributes.AUTHENTICATION_EXCEPTION);
errorMsg = (ex != null) ? ex.getMessage() : "Invalid credentials";
}
}
String contextPath = request.getContextPath();
StringBuilder sb = new StringBuilder();
sb.append("<!DOCTYPE html>\n");
sb.append("<html lang=\"en\">\n");
sb.append(" <head>\n");
sb.append(" <meta charset=\"utf-8\">\n");
sb.append(" <meta name=\"viewport\" content=\"width=device-width, initial-scale=1, shrink-to-fit=no\">\n");
sb.append(" <meta name=\"description\" content=\"\">\n");
sb.append(" <meta name=\"author\" content=\"\">\n");
sb.append(" <title>Please sign in</title>\n");
sb.append(" <link href=\"https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0-beta/css/bootstrap.min.css\" "
+ "rel=\"stylesheet\" integrity=\"sha384-/Y6pD6FV/Vv2HJnA6t+vslU6fwYXjCFtcEpHbNJ0lyAFsXTsjBbfaDjzALeQsN6M\" crossorigin=\"anonymous\">\n");
sb.append(" <link href=\"https://getbootstrap.com/docs/4.0/examples/signin/signin.css\" "
+ "rel=\"stylesheet\" crossorigin=\"anonymous\"/>\n");
sb.append(" </head>\n");
sb.append(" <body>\n");
sb.append(" <div class=\"container\">\n");
if (this.formLoginEnabled) {
sb.append(" <form class=\"form-signin\" method=\"post\" action=\"" + contextPath
+ this.authenticationUrl + "\">\n");
sb.append(" <h2 class=\"form-signin-heading\">Please sign in</h2>\n");
sb.append(createError(loginError, errorMsg) + createLogoutSuccess(logoutSuccess) + " <p>\n");
sb.append(" <label for=\"username\" class=\"sr-only\">Username</label>\n");
sb.append(" <input type=\"text\" id=\"username\" name=\"" + this.usernameParameter
+ "\" class=\"form-control\" placeholder=\"Username\" required autofocus>\n");
sb.append(" </p>\n");
sb.append(" <p>\n");
sb.append(" <label for=\"password\" class=\"sr-only\">Password</label>\n");
sb.append(" <input type=\"password\" id=\"password\" name=\"" + this.passwordParameter
+ "\" class=\"form-control\" placeholder=\"Password\" required>\n");
sb.append(" </p>\n");
sb.append(createRememberMe(this.rememberMeParameter) + renderHiddenInputs(request));
sb.append(" <button class=\"btn btn-lg btn-primary btn-block\" type=\"submit\">Sign in</button>\n");
sb.append(" </form>\n");
}
if (this.openIdEnabled) {
sb.append(" <form name=\"oidf\" class=\"form-signin\" method=\"post\" action=\"" + contextPath
+ this.openIDauthenticationUrl + "\">\n");
sb.append(" <h2 class=\"form-signin-heading\">Login with OpenID Identity</h2>\n");
sb.append(createError(loginError, errorMsg) + createLogoutSuccess(logoutSuccess) + " <p>\n");
sb.append(" <label for=\"username\" class=\"sr-only\">Identity</label>\n");
sb.append(" <input type=\"text\" id=\"username\" name=\"" + this.openIDusernameParameter
+ "\" class=\"form-control\" placeholder=\"Username\" required autofocus>\n");
sb.append(" </p>\n");
sb.append(createRememberMe(this.openIDrememberMeParameter) + renderHiddenInputs(request));
sb.append(" <button class=\"btn btn-lg btn-primary btn-block\" type=\"submit\">Sign in</button>\n");
sb.append(" </form>\n");
}
if (this.oauth2LoginEnabled) {
sb.append("<h2 class=\"form-signin-heading\">Login with OAuth 2.0</h2>");
sb.append(createError(loginError, errorMsg));
sb.append(createLogoutSuccess(logoutSuccess));
sb.append("<table class=\"table table-striped\">\n");
for (Map.Entry<String, String> clientAuthenticationUrlToClientName : this.oauth2AuthenticationUrlToClientName
.entrySet()) {
sb.append(" <tr><td>");
String url = clientAuthenticationUrlToClientName.getKey();
sb.append("<a href=\"").append(contextPath).append(url).append("\">");
String clientName = HtmlUtils.htmlEscape(clientAuthenticationUrlToClientName.getValue());
sb.append(clientName);
sb.append("</a>");
sb.append("</td></tr>\n");
}
sb.append("</table>\n");
}
if (this.saml2LoginEnabled) {
sb.append("<h2 class=\"form-signin-heading\">Login with SAML 2.0</h2>");
sb.append(createError(loginError, errorMsg));
sb.append(createLogoutSuccess(logoutSuccess));
sb.append("<table class=\"table table-striped\">\n");
for (Map.Entry<String, String> relyingPartyUrlToName : this.saml2AuthenticationUrlToProviderName
.entrySet()) {
sb.append(" <tr><td>");
String url = relyingPartyUrlToName.getKey();
sb.append("<a href=\"").append(contextPath).append(url).append("\">");
String partyName = HtmlUtils.htmlEscape(relyingPartyUrlToName.getValue());
sb.append(partyName);
sb.append("</a>");
sb.append("</td></tr>\n");
}
sb.append("</table>\n");
}
sb.append("</div>\n");
sb.append("</body></html>");
return sb.toString();
}
}默认登出页面生成
直接搜索这个类：DefaultLogoutPageGeneratingFilter
public class DefaultLogoutPageGeneratingFilter extends OncePerRequestFilter {
private RequestMatcher matcher = new AntPathRequestMatcher("/logout", "GET");
private Function<HttpServletRequest, Map<String, String>> resolveHiddenInputs = (request) -> Collections.emptyMap();
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
if (this.matcher.matches(request)) {
renderLogout(request, response);
}
else {
if (logger.isTraceEnabled()) {
logger.trace(LogMessage.format("Did not render default logout page since request did not match [%s]",
this.matcher));
}
filterChain.doFilter(request, response);
}
}
private void renderLogout(HttpServletRequest request, HttpServletResponse response) throws IOException {
StringBuilder sb = new StringBuilder();
sb.append("<!DOCTYPE html>\n");
sb.append("<html lang=\"en\">\n");
sb.append(" <head>\n");
sb.append(" <meta charset=\"utf-8\">\n");
sb.append(" <meta name=\"viewport\" content=\"width=device-width, initial-scale=1, shrink-to-fit=no\">\n");
sb.append(" <meta name=\"description\" content=\"\">\n");
sb.append(" <meta name=\"author\" content=\"\">\n");
sb.append(" <title>Confirm Log Out?</title>\n");
sb.append(" <link href=\"https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0-beta/css/bootstrap.min.css\" "
+ "rel=\"stylesheet\" integrity=\"sha384-/Y6pD6FV/Vv2HJnA6t+vslU6fwYXjCFtcEpHbNJ0lyAFsXTsjBbfaDjzALeQsN6M\" "
+ "crossorigin=\"anonymous\">\n");
sb.append(" <link href=\"https://getbootstrap.com/docs/4.0/examples/signin/signin.css\" "
+ "rel=\"stylesheet\" crossorigin=\"anonymous\"/>\n");
sb.append(" </head>\n");
sb.append(" <body>\n");
sb.append(" <div class=\"container\">\n");
sb.append(" <form class=\"form-signin\" method=\"post\" action=\"" + request.getContextPath()
+ "/logout\">\n");
sb.append(" <h2 class=\"form-signin-heading\">Are you sure you want to log out?</h2>\n");
sb.append(renderHiddenInputs(request)
+ " <button class=\"btn btn-lg btn-primary btn-block\" type=\"submit\">Log Out</button>\n");
sb.append(" </form>\n");
sb.append(" </div>\n");
sb.append(" </body>\n");
sb.append("</html>");
response.setContentType("text/html;charset=UTF-8");
response.getWriter().write(sb.toString());
}
}
